Slotted-Z
Simple. Secure. Slotted.
Slotted-Z, a fiberglass Z-Girt, combines known industry practices with advancement in both thermal performance and insulation securement that will save energy and labor costs while incorporating air and moisture ventilation. Secure insulation away from the air and water vapor barrier with our optional ROCKETStick.
Features
Air and Moisture Ventilation
Reducing risk of water damage, rot, and mold
Slotted-Z with ROCKETStick
Z-girt with insulation securement
Increasing Thermal Performance
Fiberglass has a low thermal conductivity so temperatures outside the building are not easily transferred to the interior
ROCKETStick
Optional component to secure insulation away from the waterproofing layer
Available in
Purple
Black
ROCKETStick
Z-Girt with Insulation Securement
ROCKETStick® is an optional component that integrates with all SLOTTED-Z® cladding attachment systems to secure insulation away from the waterproofing layer. The sculpted “peg & slot” insertion process makes installation quick and easy. Compatible with semi-rigid or rigid mineral wool and foam board insulation.
Advantages of ROCKETStick
Integrates with all SLOTTED-Z™ cladding attachment systems.
Secures insulation away from the waterproofing layer.
Compatible with semi-rigid or rigid insulation.
Quick and easy to install.
CL-300
Adjustable. Engineered. Thermally Efficient.
CL-300, our clip and rail system, is a thermally isolated adjustable cladding support system that can bear the weight of any cladding material and it uniquely integrates the horizontal and vertical tracks for attachment on the same plane, making it easier and faster to install.
Level & Plumb
Level and Plumb on the Exterior Plane
No Shims at the Substrate
Less Potential Damage to the Membrane
One Adjustment – Insulation Depth + Plumb/Level
Steel Stud or Slab – Quickly Resolve In-field Imperfections
Finishing Accessories
Termination solutions
Seamless finished corners, windows & doors
All cladding materials
One Product Design
Integrates with All Cladding Materials & Weights
Terracotta, Stone, Brick, Ceramic, Fiber Cement,ACM, Composite, Zinc +++
Gravity Load: 61 lb/sq. ft.

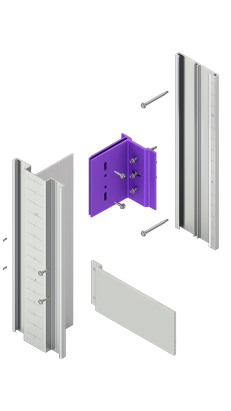

Available in
Aluminum Mill - Silver
(standard)

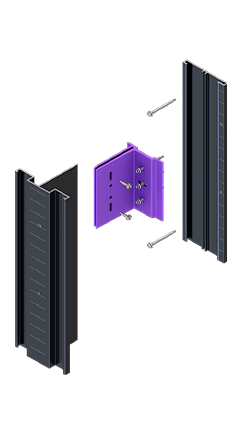

Black Anodized
(Custom)
One Complete System that Does it All
High Thermal Performance
Third-party tested – 91% thermal efficiency. Efficient thermal break achieved with polyamide clips. LEED Design Credits: Energy & Atmosphere + Materials & Resources, +
Integrates with all Cladding Materials
Terracotta, Stone, Brick, Ceramic, Fiber Cement, ACM, Composite, Zinc, +
Universal Installation
Horizontal AND/OR Vertical.
Optional Horizontal Flush-mounts
Horizontal and vertical attachment layers imbed as an integrated solution for multi-point affixing of panels on the same plane. Minimizes extension of the cladding from the substrate.
Increased Stability Behind Panels
Helps prevent oil canning deformation over time, specifically for thinner panel formats.
Accuracy to Design
Integrated install measurements, leveling and minute adjusting capability.

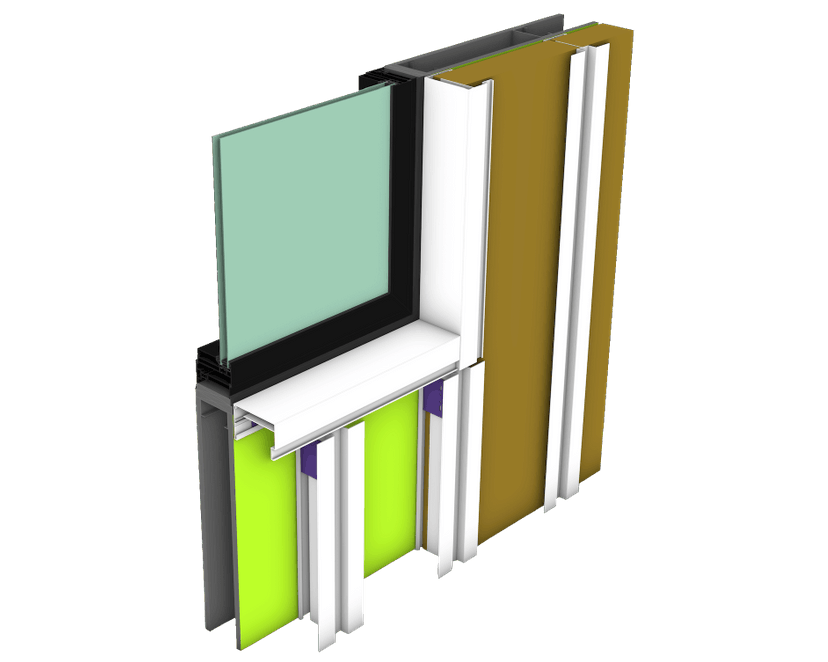

Finishing Accessories
Address termination points for corners, windows & doors. Corners can be properly supported - including a wide range of acute and obtuse angles.
Insulation Accommodation
Accommodates 2”- 8” of insulation.
Aluminum & Polyamide Components
Lightweight and strong extruded aluminum Base-Track, T-Track, Horizontal Flush-Mount*Polyamide Clip – clip strength + thermal break
Customization
Custom track lengths and system depths available.
Track Colors
Black Anodized or Silver Aluminum.
